Horn Antennas

Supported Applications

TT&C communications links
Spacecraft data link systems
K/Ka-band SATCOM applications
Broadband microwave RF link setups
Antenna range testing and characterization
Directional RF test and measurement applications

Key Features

Directional horn antenna configurations
K/Ka-band and broadband 10 to 40 GHz coverage
RHCP/LHCP, dual-linear, and linear polarization options
Dual-port, dual-ridged, and quad-ridged configurations
Gain options across standard configurations
2.92 mm RF connector and waveguide probe options

Standard Products (COTS): Available

Customized From Existing Design: Available

Fully Custom Design: Available

Supported Applications

TT&C communications links
Spacecraft data link systems
K/Ka-band SATCOM applications
Broadband microwave RF link setups
Antenna range testing and characterization
Directional RF test and measurement applications

Product Capabilities

Directional horn antenna configurations
K/Ka-band and broadband 10 to 40 GHz coverage
RHCP/LHCP, dual-linear, and linear polarization options
Dual-port, dual-ridged, and quad-ridged configurations
Gain options across standard configurations
2.92 mm RF connector and waveguide probe options

Standard Products (COTS): Available

Customized From Existing Design: Available

Fully Custom Design: Available

Standard Product (COTS) Options

Click below to access data sheets.

Standard Product (COTS) Options

Click below to access data sheets.

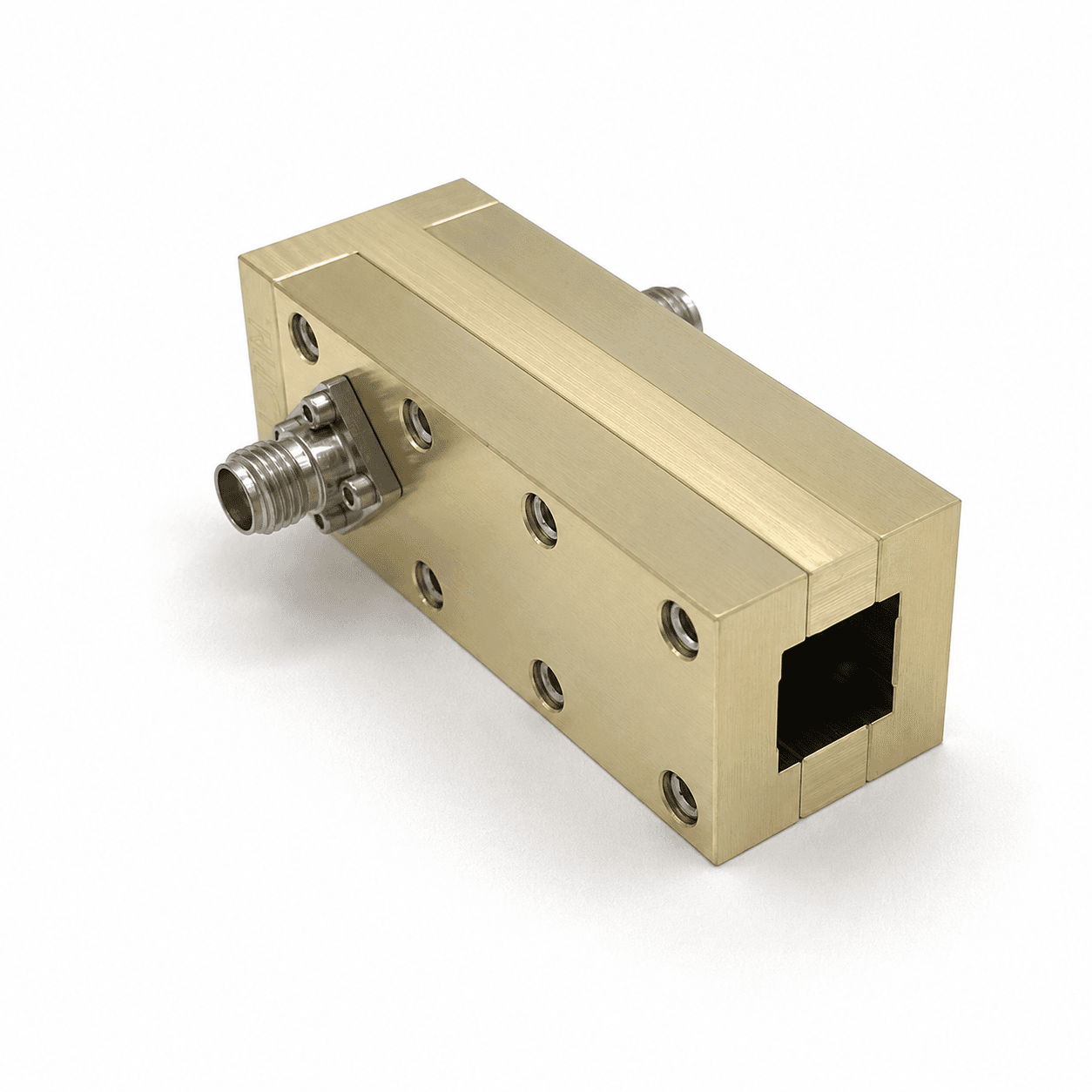

K/Ka-Band Dual-Port Waveguide Probe,
6 to 10 dBic

Compact RHCP/LHCP waveguide probe for TT&C, spacecraft data links, SATCOM RF links, and antenna range testing.

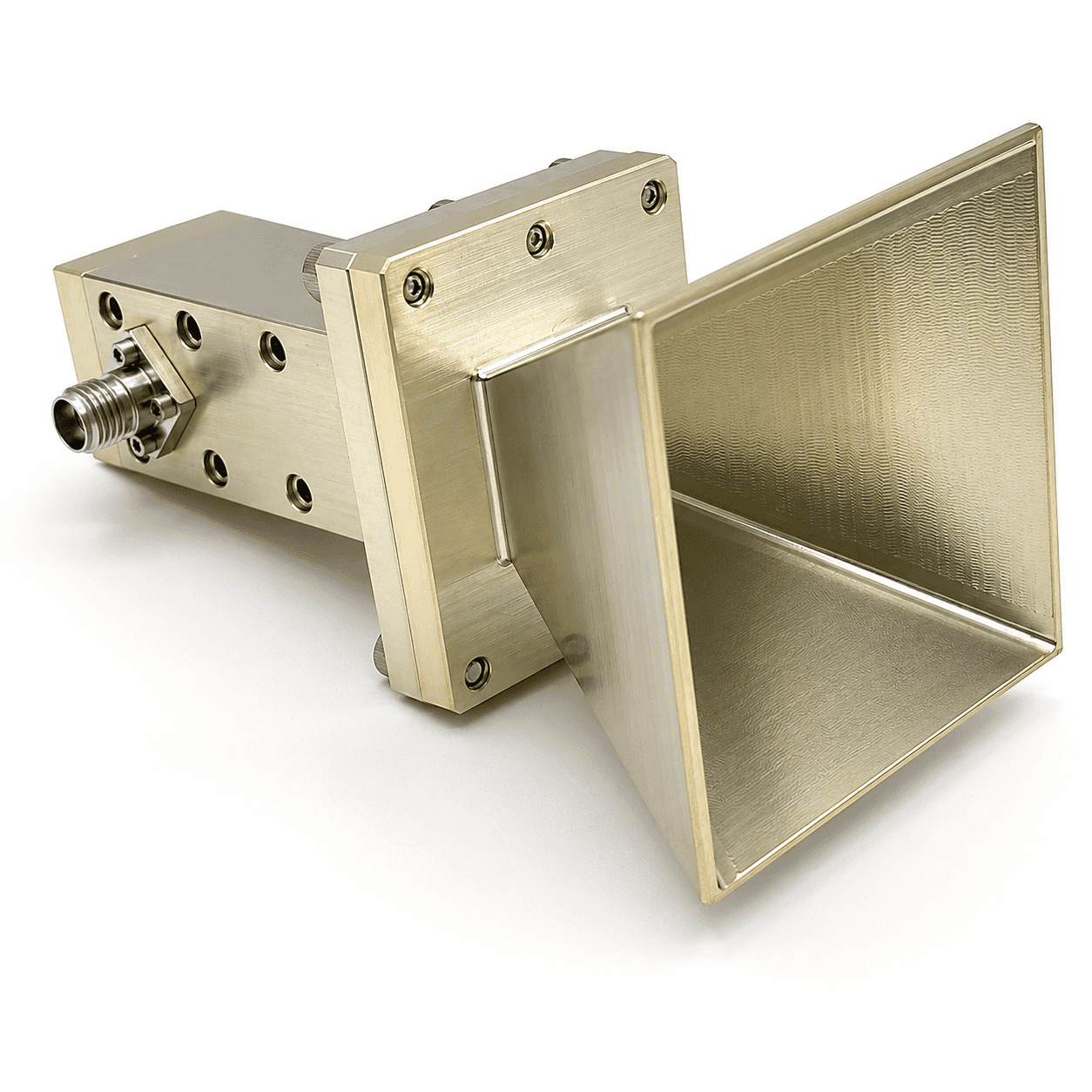

K/Ka-Band Dual-Port Horn Antenna, 15 dB

Dual-port RHCP/LHCP horn antenna for TT&C, spacecraft data links, K/Ka-band SATCOM, and RF characterization.

K/Ka-Band Dual-Port Horn Antenna, 20 dB

Higher-gain RHCP/LHCP horn antenna for focused K/Ka-band TT&C, data link, SATCOM, and RF test applications.

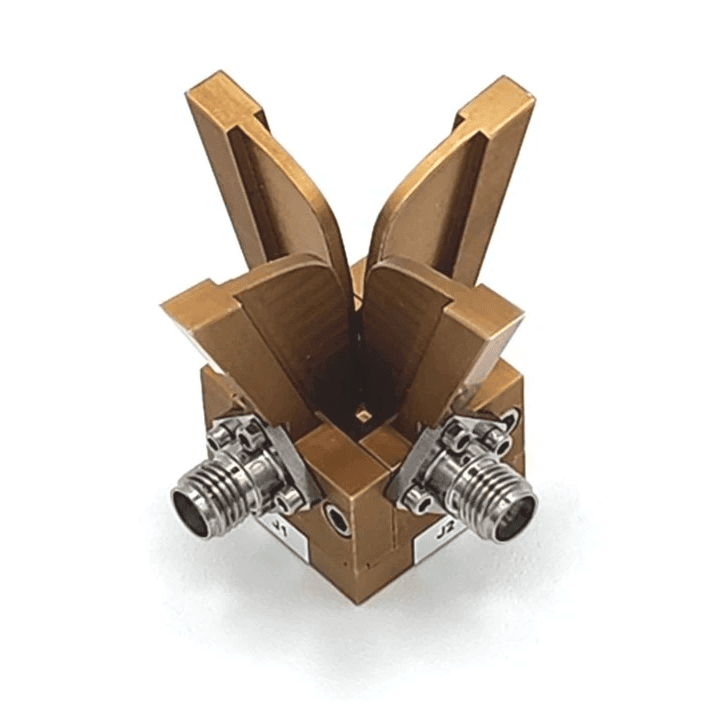

Quad-Ridged Horn Antenna, 10 to 40 GHz

Broadband dual-linear horn antenna for TT&C links, spacecraft data links, microwave testing, and RF characterization.

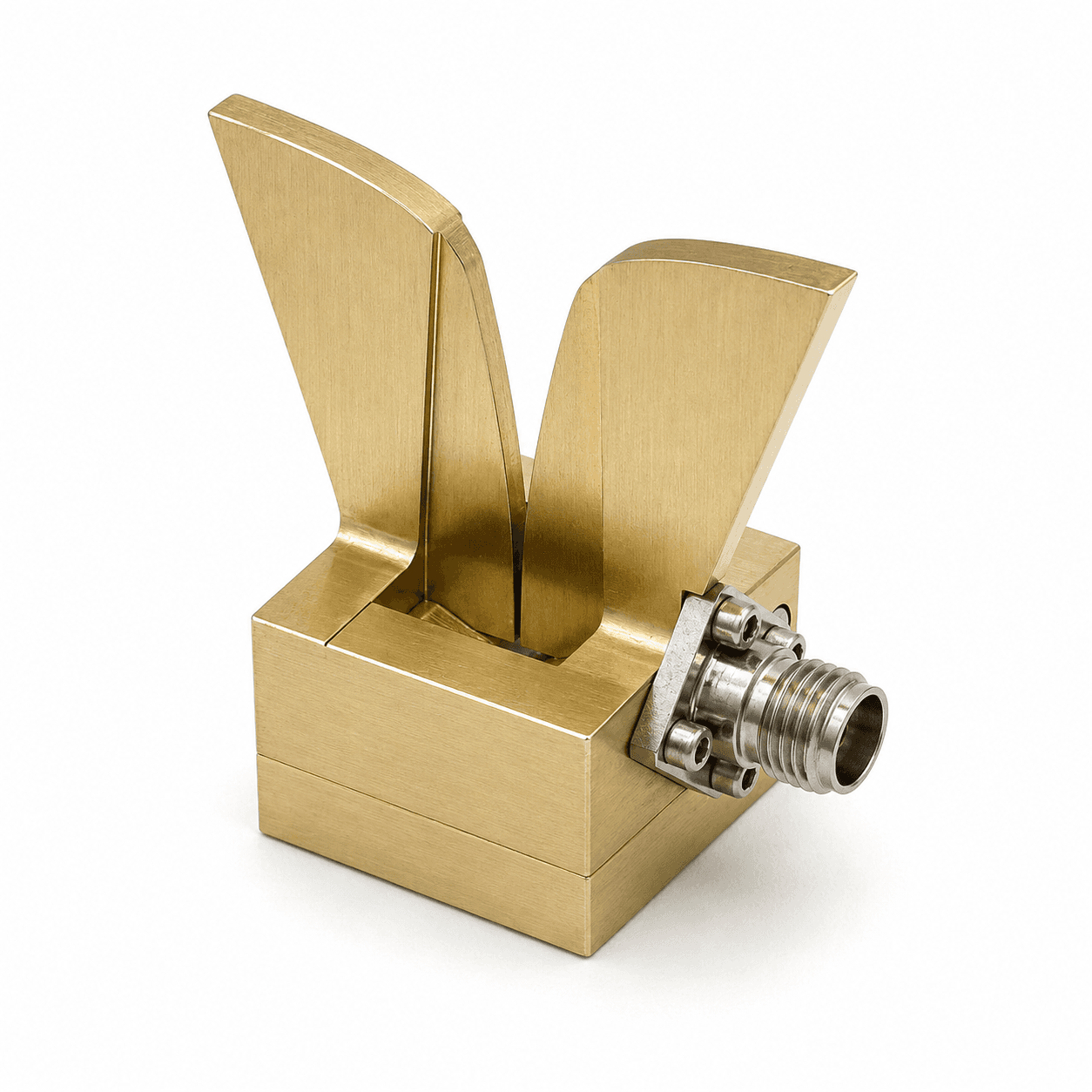

Dual-Ridged Horn Antenna, 18 to 40 GHz

Broadband linear horn antenna for high-frequency microwave links, antenna range testing, and directional RF measurements.

Interested in a standard product, customized configuration, or fully custom design?

Contact Lucentum to discuss available options for your requirement.
